Mechanical Design of a Clean Dry Room for Lithium-Ion Battery Manufacturing

From managing complex logistics to addressing environmental constraints like extreme temperatures and limited resources, we’ve successfully tackled these hurdles head-on. In this blog, we delve into the critical challenges of remote cleanroom installations and share how ACH-A Cleanroom Hub’s innovative turnkey solutions, modular systems, and advanced cleanroom technologies ensure seamless execution, regardless of location.

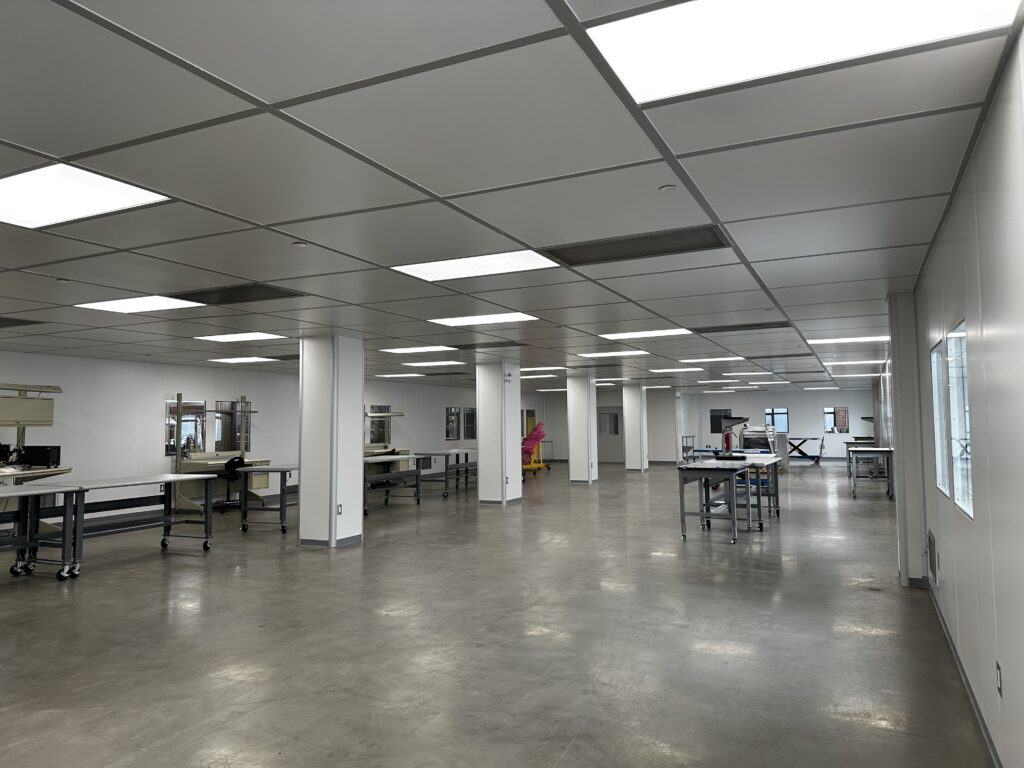

Introduction

The demand for lithium-ion batteries has surged, driven by the growing adoption of electric vehicles and renewable energy storage solutions. Central to high-quality battery production is the dry room, an ultra-low humidity environment critical for handling sensitive materials like lithium compounds.

This blog explores key design considerations for clean dry rooms, focusing on the distinction between room design dew points and discharge air dew points, and the technological advantages of desiccant-based systems over cooling systems for achieving stringent humidity requirements.

The Role of Dew Point in Dry Room Design

Dewpoint Basics

The dew point is the temperature at which air becomes saturated with moisture and condensation occurs. In dry room environments, the target dew point is extremely low, typically around -40°C or lower.

This corresponds to a relative humidity (RH) of less than 1%, critical for preventing material degradation and ensuring product consistency.

Room Design Dew Point vs. Discharge Air Dew Point

Room Design Dew Point refers to the environmental conditions maintained within the dry room. It must accommodate variables such as personnel presence, material outgassing, and air infiltration. For lithium-ion battery manufacturing, this value is commonly set at -40°C or below to maintain a safe and stable working environment.

Discharge Air Dew Point, on the other hand, is the condition of the air supplied into the dry room by the HVAC or dehumidification system. It is typically lower than the room design dew point to offset internal moisture loads. For example, if the target room dew point is -40°C, the discharge air dew point might be designed around -50°C to ensure moisture removal from internal sources like human respiration and equipment.

By designing the discharge air to a lower dew point, the system compensates for the moisture introduced into the space, effectively stabilizing the room’s humidity at the desired level.

Achieving Ultra-Low Humidity: Cooling Systems vs. Desiccant Technology

Limitations of Cooling Systems

Cooling-based dehumidification works by lowering air temperature to condense and remove moisture. While effective in conventional settings, this approach faces limitations in achieving ultra-low humidity:

1. Temperature Constraints: Cooling systems are less efficient at reaching dew points below 5°C without incurring significant energy costs or requiring complex auxiliary systems.
2. Energy Intensive: Achieving dew points around -40°C would require extreme cooling, leading to high operational costs and larger equipment footprints.
3. Condensation Risks: At ultra-low humidity levels, condensed water can freeze on cooling coils, reducing system efficiency and reliability.

Desiccant Dehumidification: The Optimal Solution

Desiccant systems, particularly those using silica gel or molecular sieve materials, excel in maintaining ultra-low dew points. These systems operate by adsorbing moisture directly from the air and regenerating the desiccant material using heat. Key benefits include:

1. Ultra-Low Dew Points: Desiccant wheels can achieve dew points as low as -60°C or even lower, far surpassing cooling-based systems.
2. Energy Efficiency: Advanced systems are available now to recover heat during the desiccant regeneration process, reducing regenerative energy consumption significantly.
3. Compact Design: Higher moisture adsorption efficiency allows for smaller equipment sizes, ideal for large-scale facilities (Gigafactories).

The energy savings and reliability of desiccant systems make them the preferred choice for high-demand applications such as lithium-ion battery manufacturing, where maintaining stringent humidity control is paramount.

Key Considerations in Dry Room Mechanical Design

Airflow Management

Maintaining a consistent dew point requires precise control of airflow. A typical system mixes return air from the dry room with a small volume of conditioned outdoor air to balance pressure and manage infiltration. This mixture is then pre-cooled and passed through a desiccant wheel to achieve the desired discharge dew point.

Energy Optimization

To reduce operational costs, advanced systems incorporate energy recovery features. For instance:

• Technologies that reuse residual heat from the desiccant wheel to preheat the wheel before regeneration, significantly lowering energy requirements.
• Efficient pre-cooling stages minimize the cooling load by condensing out excess moisture before it reaches the desiccant system.

Scalability and Redundancy

In large-scale battery production, dry rooms are substantial investments with high operational costs. Design strategies should include modular dehumidification systems to scale with production needs and ensure redundancy in case of system failures.

Conclusion

The mechanical design of clean dry rooms for lithium-ion battery manufacturing hinges on precise humidity control, efficient energy use, and scalability. While cooling systems are effective for moderate humidity requirements, desiccant-based solutions are indispensable for achieving the ultra-low dew points required for advanced applications. By understanding the interplay between room design dew point and discharge air dew point, and leveraging innovations in desiccant technology, manufacturers can optimize performance and reduce operational costs.
